Thursday, 27 February 2014

Belt Driven RSB Pillar Drill for Stationary Engine


Here is a video of another RSB Camelback of a different design but similar size.


I have tried contacting the guy via utube messaging.  Hopefully he will get back to me and can shed some light on the pulley sizes and if there is a mechanism missing from behind the handle.  Maybe he will know a little about the history of RSB

Riding the Camel



Started cleaning it up today.



I'm wondering if this is mean't to be a ball race for a bearing?? Also what are you supposed to use to tighten those collars? It looks like they have used a mallet & punch.

Click image for larger version.

Name: IMG_4904.jpg
Views: 19
Size: 102.8 KB
ID: 305381Click image for larger version.

Name: IMG_4905.jpg
Views: 22
Size: 110.7 KB
ID: 305382



Not quite sure why this grub screw also has a nut.

Click image for larger version.

Name: IMG_4906.jpg
Views: 20
Size: 144.4 KB
ID: 305383Click image for larger version.

Name: IMG_4907.jpg
Views: 21
Size: 131.7 KB
ID: 305384

Click image for larger version.

Name: IMG_4908.jpg
Views: 16
Size: 157.0 KB
ID: 305385



Rear mount point for the pulleys to the base or motor mount.

Click image for larger version.

Name: IMG_4909.jpg
Views: 15
Size: 164.3 KB
ID: 305386Click image for larger version.

Name: IMG_4910.jpg
Views: 14
Size: 160.3 KB
ID: 305387Click image for larger version.

Name: IMG_4911.jpg
Views: 14
Size: 138.0 KB
ID: 305388

Table.

Click image for larger version.

Name: IMG_4912.jpg
Views: 14
Size: 177.2 KB
ID: 305389
Feed handle raises the quill and gravity feeds it, I think maybe a spring is missing from the top which would reverse this.
Click image for larger version.

Name: IMG_4913.jpg
Views: 15
Size: 137.0 KB
ID: 305390




The pulley setup should look something like this one.





Some did have a main drive pulley which connected to a line drive, others had their own motor at the base and connected where the line drive would be. These must have been around over a crossover period. Which of these mine was originally is unknown. Although based on the history of the RSB lathe it suggests that this was an late 1800s drill.  In the advert above you can see both options belt and motor driven were available.


I estimate the large pulley should be about 4"x1⅜" and the speed of the driving pulley (aka motor speed?) 550 RPM based on various brochures.






Definitely think this was a thrust bearing but it has been castrated & lost its balls

Click image for larger version.

Name: Thrust Bearing No Balls - 31.jpg
Views: 4
Size: 152.7 KB
ID: 305668Click image for larger version.

Name: Last Import - 03.jpg
Views: 2
Size: 131.9 KB
ID: 305647Click image for larger version.

Name: Last Import - 04.jpg
Views: 2
Size: 122.3 KB
ID: 305648Click image for larger version.

Name: Bearing Groove on Rack - 22.jpg
Views: 2
Size: 137.1 KB
ID: 305637

Keyway has seen better days.

Click image for larger version.

Name: Bearing locking rings keyway - 20.jpg
Views: 2
Size: 178.1 KB
ID: 305638Click image for larger version.

Name: Keyway - 19.jpg
Views: 3
Size: 178.1 KB
ID: 305644

Click image for larger version.

Name: Last Import - 24.jpg
Views: 2
Size: 143.7 KB
ID: 305652Click image for larger version.

Name: Locking Rings - 21.jpg
Views: 2
Size: 160.6 KB
ID: 305654Click image for larger version.

Name: Matching Faces - 25.jpg
Views: 2
Size: 154.4 KB
ID: 305655Click image for larger version.

Name: Matching Faces - 26.jpg
Views: 2
Size: 133.6 KB
ID: 305656



Really thinking there is something missing from in here, There is a pin on each half and those flats must have served some purpose? Maybe a return spring?????? Any ideas??

Click image for larger version.

Name: Missing Spring Mechanisim maybe - 27.jpg
Views: 3
Size: 154.0 KB
ID: 305657Click image for larger version.

Name: Missing Spring Mechanisim maybe - 28.jpg
Views: 3
Size: 151.1 KB
ID: 305658
Click image for larger version.

Name: Cam and locking screw - 09.jpg
Views: 2
Size: 115.5 KB
ID: 305639Click image for larger version.

Name: Cam in place - 08.jpg
Views: 2
Size: 145.4 KB
ID: 305640Click image for larger version.

Name: Feed Housing - 07.jpg
Views: 2
Size: 242.7 KB
ID: 305642Click image for larger version.

Name: Feed Housing complete- 06.jpg
Views: 2
Size: 151.5 KB
ID: 305643


Rack & pinion show a little bit of wear.

Click image for larger version.

Name: Pinion - 11.jpg
Views: 3
Size: 99.1 KB
ID: 305659Click image for larger version.

Name: Pinion - 12.jpg
Views: 3
Size: 157.3 KB
ID: 305660Click image for larger version.

Name: Rack- 23.jpg
Views: 3
Size: 166.4 KB
ID: 305661

Click image for larger version.

Name: Rear Mount Point - 29.jpg
Views: 2
Size: 171.2 KB
ID: 305662Click image for larger version.

Name: Rear Mount Point - 30.jpg
Views: 3
Size: 152.3 KB
ID: 305663



This grub screw and nut hold the sleeve in place with that groove, do you think this is correct or modified??

Click image for larger version.

Name: Sleeve locking grubs screw & nut.jpg
Views: 2
Size: 157.5 KB
ID: 305664Click image for larger version.

Name: Last Import - 02.jpg
Views: 2
Size: 129.7 KB
ID: 305646

The butchered grub screw here which has definitely been a hack job is filled on the end to work as a key. What should it have been?????

Click image for larger version.

Name: Sleeve with grub screw key- 17.jpg
Views: 3
Size: 135.6 KB
ID: 305665Click image for larger version.

Name: Sleeve with grub screw key.jpg
Views: 2
Size: 213.0 KB
ID: 305666 Click image for larger version.

Name: Last Import - 01.jpg
Views: 2
Size: 130.9 KB
ID: 305645






Click image for larger version.

Name: Spindle assembled - 18.jpg
Views: 2
Size: 181.7 KB
ID: 305667



I have so many questions and the is so little info I can find. Some photos or adverts for "similar" drills, but they still don't show what is inside!



I'd love to know what mounted at the base? I can only assume it was a bracket for the stepped pulleys.


I deduce there was a two position arm with a locking screw at the elbow with guide pulleys. As the belt turns 90 deg over those guides I am thinking the tangent of the pulley would align with the centre of the drive pulley?? If I figure out the pulleys I can then work out the arc of the arm as it rotates between positions hopefully. Would the guide pulleys have bearings, or just greased up steel on steel? There isn't any bearings any where except for the one (thrust bearing) I believe should have been in the spindle.


How much crowning is required on the pulley and how much wider than the belt would they be?


What size would the second stepped pulley be if the larger was 4½" and how do I calculate the ratio of the pulley at the top to the pulley at the bottom and then to the drive pulley and to the rpm of the motor to get the correct drill speed. That is too much maths for me!


I also would like to know how the remove the chuck from the spindle. My guess is the spindle has a short taper which friction fits into the chuck?



This one might be easier to answer, drill chuck keys do they come in standard sizes?? It is missing on this drill and doesn't match the three keys I have. The chuck is un branded.




How hard would it be to set the table up perpendicular to the column and have the raised portion of the table redone on a surface grinder???



Ok I'll stop babbling on now…………..






The little Beastie - Camel Back Drill


I picked up this drill last weekend.  It is made by RSB..

The lower section of the pillar should be polished, it has currently been painted. It is a bearing surface for the table so slide on and rotate so I will strip it back again.

The same with the raised centre of the table, although I would like to have that ground, so it is true, flat and perpendicular to the column/drill bit.



 Was probably imported into Australia and retailed by Miller & Co (Machinery) Pty Ltd Machinery Specialists South Melbourne & Bendigo as per the brass plaque.
Looking for any info related to either of these companies which may help in identifying the drill with the intention of getting it back to original state.


Can't seem to find any info what so ever on her.
Nor can I find one of the same design. Most are an upside down L shape not F shape like this or they have the Y shape with the pulleys running horizontal across the top.
It is also an unusual size from the others I have seen are much smaller or huge at full size.

This lathe has the same Branding.




Any info that can be provided on this Drill or RSB please contact me.



Sunday, 19 January 2014

Dawn 611 Post Drill Bearings

I was recently asked on a question on this thread post :

Resurrection. of a Dawn 611



Hi there. Nice article (and drill!) I not long ago purchased one my self, although it doesnt have the variations like yours does. I was wondering if you could provide me with some information regarding the thrust washer assembly, as mine is completely cactus. All I have left is a very worn disc that contacts the down feeder, the top washer for the thrust bearing, a very worn thrust bearing, a whole heap of chewed metal (presumably the lower washer for the thrust bearing) and the split washer that locates in the drill spindle. My question is whether I am missing anything else that needs replacing? Any info would be much appreciated.
Ryan



HI Ryan thanks for visiting.

There were two variations. One has a fibre washer which basically acted as a clutch plate.
The second variation the two steel plates had a very slight groove and a bunch of small ball bearings in some thick grease.

Basically two matching discs (Top & Bottom), Either a fibre dis or bunch of ball bearings. Then two half moon washers which hold the spindle inside the coupler.
These both can be replaced with a modern thrust bearing case. There is a replacement bearing available. Part no. 51102 from many suppliers around. I have replaced some of mine with these.

As I can't post images in my response I thought I'd add some images in a post.

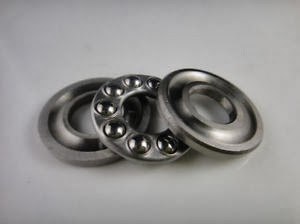

New 51102 Thrust Bearing

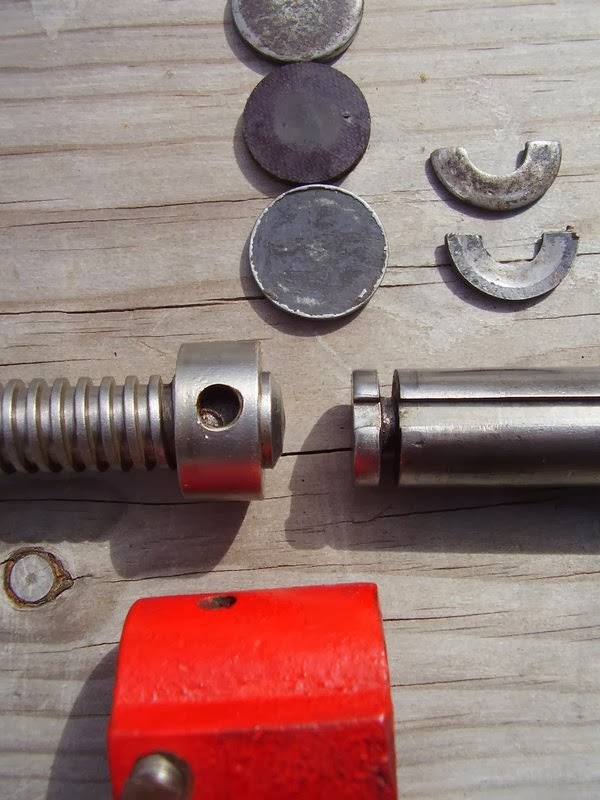

Original showing fibre disc version
Hopefully Ryan will come back an get an update.


Thursday, 14 November 2013

Tool Making

Made me some tools biatch!


Tips haven't been honed here

I prefer this shape over the two smaller ones with the rounded lip.. The large brass head on the big one also gives it some decent heft.


The olive wood little marking gauge was a gift. The brass headed carvers mallet was the first tool.  Followed by the bird cage awl. Most recently I made the thin kerf dovetail saw.  Can't get the steel here so it was imported from the UK. Even the bolts are hand made split nuts. Filled to 18 PPI and I hate setting saws I find that process very tedious.
