Bastard Child

Was just thinking this springer and my girder could be distant relatives or a bastard child.

The spring set up on my girder is similar to that on early OEM harley springers. It is unlike any other girder I have seen.

The dirty girder……

Here is the last of the loot from the swap.  My major purchase.

The dirty girder………..

This thing is heavy as hell and needs a good clean up.  The chrome straps and risers is cactus. The rest of the thing has a dark brown paint chipping off it and possibly old chrome underneath.  The bottom has axle clamps, not normally seen on girders in my experience. One of these is missing the guy who sold it to me said it was in his truck & would post it to me…….I doubt I will ever see it.



Looks like it has drainage holes and grease nipples.  I think from the weight it is soild not tube, and the bolts will all need replacing.

Good place to start..

Anyone seen one like this before love to know the history of it.  Guy who sold it didn't know anything about it.

I’m thinking of painting the metal black and having the chrome brass plated.

Foot Peg Fetish MKII

Bit of background on another of the odd pegs.

I love old, used parts and trying to find out their history.

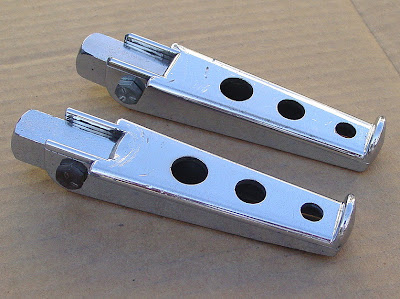

Old set of Drag Specialties Holy Pegs. These were a knock off of Randy Smith's Custom Cycle Engineering Holy Pegs and are cast steel instead of aluminum. I checked the D.S. catalog and they are no longer available.



They are threaded for a fine thread 3/8" bolt.


The original C.C.E. Holy Pegs are almost impossible to find and are priced accordingly.


Great pegs for a vintage chopper or bob job.

Foot Peg Fetish…...

Doing a bit of research on my odd pegs from the swap I came across a post MCartwebzine
http://motorcycleart.blogspot.com.au

You will see the relevance at the bottom in the comments section, re my Rocky peg.

WEDNESDAY, JANUARY 28, 2009

Foot Peg Fetish

At one time chopper standard equipment included: Bates headlights and seats, Wassell tanks and ribbed fenders, Flanders risers and bars, and Anderson pegs.

In order of coolness, from left to right: Anderson, Posa Fuel, Holy Pegs, and H-D. Does anybody know anything about Anderson or it's history?


Note the markings. Holy Pegs (no name). Harley's are marked H-D on tip and Made in Taiwan (boo!) inside. The Anderson's are aluminum, not sure on the center two. H-D's are heavy pot metal.

The steel mount for the Anderson above is incorrect. The threads in the original aluminum mounts tended to strip. I have two sets and both have the mounts replaced with steel units. I have saved some original aluminum ones but they need repair.

The Posa peg and the Holy peg were mismatched in a box of parts I recently bought. I have since found another Holy Peg so, now I'll look for a Posa. Posa Fuel and Lake made those (injector) slider carburetors in the 70's. I don't know who made the Holy Pegs, Custom Chrome sold and may still sell them.

Harley still sells the ones on the far right with clamps (H-D #49144-86), as a multi-fit item for engine guards/crash bars.

Unknown NOS stamped steel pegs and mounts. I once had (sold), two of these sets. One set had a flat instead of rounded tip. They have very subtle round bumps on them.

This is just a small sample of the different styles and brands out there. I've seen some very similar to Anderson but marked ETB?

Arlen Ness: Torpedo

ARLEN NESS BILLET GRIPS FOR 2008 TOURING MODELS • CNC machined from 6061-T6 billet aluminum • Twisting the throttle has never been smoother or easier • Chrome finish with some styles available in black anodized • Sold in pairs

Arlen Ness: Torpedo Billet Grips (Chrome)- Harley Davidson Cable Type Throttle Models (76 and newer)

Item 26-3003 USD $139.00

Arlen Ness #07-134
Fits 76-10 H-D Models (exc. 2009 FL)

Seen them on sale for online for $99.00 so not bad for $5…….Maybe I should stick up on Flea bay and see what I can get???? Put the profits towards getting my build finished.

More Loot……….

Few more bits of the loot from Sat at the swap……….

Some solid brass petcocks with unknown threads. ONe with brass screen, Apparently they came this way  from good old England! Which would lead one to guess they may be to suit a british cycle.  Can always turn up some adaptors.

Looks right just hope it is correct size for the colchester.  At $20 it was the second most expensive item of the weekend.  Yes I'm a cheap bastard!!!!!!

Boring Bar, Big Ass British 1"Spanner (To Be pin Striped),  31/32" Drill with the boring bar will get 1" riser holes, and a ⅞"Drill for the ⅞ bars. Jar of small metric sockets (the ones you always loose), and lastly an authentic old skool welded chain number plate surround.

There is one more score left to show and I'm keeping the best for last!!!!! Stay posted!

Tips and Tricks for Vintage Racers

More from www.vintagebrake.com

Tips and Tricks for Vintage Racers

DISC BRAKE TIPS

Change fluid with Castrol LMA (especially Lockheed users) or Ferodo DOT 4 Racing for severe usage, at least annually, more frequently in humid climates or if used for racing(1-2 events). DOT 5 silicone brake fluid is NOT recommended.

DO NOT use aerosol cleaners-some leave residues that promote glazing.

Continued glass beading of rotors will optimize performance.

When changing pads, always prepare the disc rotors by cleaning with an aggressive scrubbing with Scotch-Brite (steel grade) abrasive pads, 180 grit sandpaper, or glass beading (preferred) to remove boundary layer deposited by previous pads. Rinse with MEK, denatured alcohol, or acetone.

Many compounds need a heat cycle to fully cure them. You shouldn't start a race on a fresh set unless you are sure that compound doesn't require it.

Disc lightening--drilling vs. thinning: both will reduce mass and therefore heat sink capability. Some pluses for drilling.: If the holes drilled are smaller in diameter than the thickness of the disc, surface area is increased. With the right pattern, potential for warpage is decreased. Holes or slots with give the gas bubble created someplace to dissipate. Finally, the thicker disc allows the pads to sit deeper in the caliper, minimizing cocking and enhancing retraction. The down side is that it is very difficult and usually impossible to drill a pattern that will sweep the entire face of the pad, creating uneven pad and disc wear. Thinned discs need to be slotted. Grey iron rotors (vintage Norton and Triumph) should not be modified.

Check material for fit on the disc. Lockheed applications where the friction material rides out over the edge of the disc will benefit from the use of the Grimeca application-- moves material down 3mm.

DRUM BRAKE TIPS

Carefully inspect drum surface for grooves (obvious), crown (not so obvious), out of round and high-low spots (dial indicator). Crown often occurs with riveted linings. High-low spots commonly result when relacing hubs. There is no substitute for a freshly turned drum for premium friction materials to bed-in against. It's like putting a new piston in an old bore-never as good as with a fresh bore and hone. And you should inspect drum surface with the same critical eye. Tolerance: .002 to .004”" any dimension. Up to .010” out-of-round may be tolerated.

If you are re-riveting new linings yourself, DO NOT drill out the rivets. Chisel off the peened end and drive the rivet out.

Materials currently available far exceed those previously available. Reline your shoes with a current premium compound

Keep in mind the low unit pressures required for mechanically operated drum brakes. Most linings require the higher unit pressures available hydraulically.

Very few modern materials are compatible with pressed steel drums.

Lay back leading edge of leading shoes in 1/2 inch increments to minimize initial "bite" if brake is too "grabby", especially when hot.

The expanded metal used to cover scoops is typically 15% to 23% open area. Replace them with stainless steel screens with 50% to 60% open area, tripling air flow.

Use sealed wheel bearings --grease vapor can contaminate linings. Once contaminated, they never recover.
.Lubricate backing plate components SPARINGLY with a 500F. + degree grease, such as Sta-Lube Sta-Plex Extreme Pressure, available at NAPA.  Liberally lube parts and assemble. Disassemble and carefully remove all excess grease.

Check to see how far the backplate extends into the drum. Too far in and the sides of the shoes drag on the hub, creating excessive heat. Epoxy a shim to the inside of the backplate. Not far enough, and a ridge forms where there is no contact. Bend backplate or remove material to correct.

Worn pivot shafts cause uneven actuation. Rebush if necessary.

If a stay is used, make sure it does not cock the backplate.

Always apply brake when tightening axle.

If you want to arc the linings yourself, and have access to a lathe, first mount the relined shoes on the backing plate. Turn on the lathe (300-350rpm) to .020" under drum I.D. in .010" cuts.

MC Ratio

Since I have most of the gear to run 1" Bar set up I need to get the levers happening. So How do I match a 1" Bar (most likely HD) fitting master cylinder to my existing brakes? Well here is some interesting data to consider.

Front Master Cylinder Ratio Chart

While attending Vintage Days West, and thoroughly enjoying it, I was reminded that many of the people I had occasion to talk to, lacked an understanding of the importance of master cylinder to wheel cylinder ratios. This critical ratio is of paramount importance in determining "feel". It has been my experience that there is a "sweet spot" in the range. I like ratios in the 27:1 range-2 finger power brakes, feeling some line and/or caliper flex. 23:1 is at the other end of the spectrum-firm. Ratios lower than 20:1 can result a feel so "wooden" as to have a toggle switch effect: nothing happens until the wheel locks. Disc and wheel diameters must be taken into consideration. A 10 inch disc working against an 19" wheel just doesn't have the leverage ratio that a 13 inch disc working a 17" wheel does. The hand lever ratio counts too: witness the adjustable master cylinders from Lockheed and Brembo.

A case in point: I had a complaint from a racer about Ferodo CP901- a compound renown for its great feel. His comment was that they worked poorly until the wheel locked. He had been thrown on the ground twice. Intrigued, I inquired as to the application. "Yamaha RD350" he replied. A red flag went up. CP901 was not available for the 48mm Yamaha caliper. I asked "How that could that be?" He had up-graded his braking system with the  41mm Lockheed unit, but was unaware that a master cylinder change was in order. A stock RD 350 has an already poor ratio of 18.3 :1, and with Lockheed, became an unhealthy 13.3 :1. The "sweet spot" formula said a change to a 11 or 12mm master cylinder was in order: my personal preference and recommendation would have been an 11mm. He was able to switch to a 1/2" , and although not ideal, he was keeping the rubber side down.

For 2 piston opposed calipers, I like ratios in the 27:1 range, feeling some line and caliper flex. For a firmer lever, use 23:1. I think ratios lower than 23:1 produce a lever feel so "wooden" as to have little, if any feel. Combine "low" leverage ratios with sticky pads, and unpredictable lockup is the result. The high effort required at the lever also results in undesired input to the bars. Single piston calipers are much happier in the 14:1 to 12:1 range. Disc and wheel diameters, as well as hand lever ratios, must be considered.

Front Master Cylinder to Wheel Cylinder
Ratio Chart

Sourced from   www.vintagebrake.com

Now to find some data on what the XS has for a single disc 76 setup?

The Swap loot Part .1

Billet Grips, Guy wanted $10, thought they must be chromed plastic chinese copies, offered $5 and got them while walking away noticed the Arlen Ness logo on em…Score!

Got these two bars as a pair. The drag bars are ⅞" (new with labels) and the low rise trackers are 1" and mega thick gauge. They also have stainless bar end insets recessed in and with a threaded hole.

Another $5 which was way cheaper than the $40 they were going for everywhere else. Hoping I can rig this up to fit a headlight for the cafe-racer.

Go these single pegs for $5 the lot.  The  Rocky one is cat aluminium so figure I can have a crack at casting a few from it as a pattern to get a full set. And maybe try the same with the others.

Few more items to add that are still in the boot of the car so didn't get to take any happy snap yet.

Ballart Sat

So we arrived in Ballarat at what I used to think were my cousins house, turns out they are actually my Mother's cousins…Dunno what that makes them to me.  Other than almost strangers lol.  Like I said I have only met them a few times in my life.

So almost within 5min Rodney has me out in his Garage which is 3 maybe four cars wide and easily 3 cars deep.  He warns me and apologises for the mess….…What mess have you seen my garage??????
So here is what I saw.

Norton in process of being restored on the bench. The Suzuki which has been on many trips including the red centre to see Ayres Rock etc.
The old Yam which was his first road bike ever and it's twin which was bought later to it's right.
The last for the FJ1200 and the fully restored Norton Comando both of these regular riders.

Quite a collection, he also had an original XS1 back in the day and is looking for another.

Later that night which we never stopped talking bikes I asked so if all that is in the little garage, then what have ya got in the big shed. The big shed is just that, twice as long as the garage and two storeys in height.  Well lets just say there was I morris minor ute, a Datsun 180B (I think) ute, 4 of the same old Classics for resto (some strange rare thing I had never heard of before), a fully worked 5.7l SS comodore, his daughters lil car and the tray truck… All with room to spare.

Nice huh don't we all wish we had that space!

Sat morning up 5AM and down the swapmeet 6am, still dark.
Just cracking light by the time we walk through to the bike section, lots of guys still curled up in their swags surrounded by piles of discarded tinnies.

Most of the bikes and parts were of this vintage.

This was a really cool lil ride!

$23k & $30K from memory and a only a few years between the models

Quirky lil scooter showing off this fellas polishing services.

Aliens 0 Predator 1

Lots of early 1950s F100s & Chevs…..
I want one damn it!

I wandered constantly untill 3:30pm….so 9.5Hrs with no food and not enough water it was forecast 37Deg in Melb and out there at the swap there was no shade.   It was a good experiance and I counted around 300 bike specific stalls in that section, of the 2300 total. But there was plenty of bike parts mixed in with the car stalls.  I enjoyed the day throughly but was a little dissapointed that there wasn't more old bikes (50-70s). They were nearly all old 20s & 30s models. Lots of Indisn Scouts, BSA, Triumphs. Few Vincents, Ariels, & similar. Not much Harley, chopper or Custom type stuff.

I didn't get any of the stuff I had on my list, like risers, dog bones, Z bars, etc.

I did score a bit of loot though.  All of which was quite heavy lugging around.

Full Throttle

Put out a call a little while back for a 1" Throttle and Clamp as I wanted some take off parts to try a 1" bars out.  Didn't really want to invest much until I was sure I'd be happy.

Anyway got a parcel in the post today and it wasn't what i was expecting………I got a shiny brand new clamp and a white plastic throttle sleeve.  Compliments of Olly over at Independent Parts.

I am really stoked with the generosity here.  I say check em out if your in need of a few bits for ya scoot!

Independent Parts Ebay Store

Independent Parts Website

info@independentparts.com.au

Ph 9331 5400
Keilor Vic


Olly is also building a really nice 750 chop at the moment.

Ballarat Swap

The Ballarat swap meet is on again for 2012 at the Ballarat airport this weekend, the 25th and 26th Feb. And plans are underway to make the 22-year event event — which nearly folded last year — bigger and better than ever.

The swap meet, formerly the Super Southern Swap Meet, folded in controversial circumstances last year when organisers said their lease agreement with Ballarat City Council had become unworkable. It was saved in October last year by the seven combined Rotary Clubs of Ballarat.

Lucky for me I have family in Ballarat (which I have met like a dozen times in my life)….. As I couldn't find, hotel, motel, bungalow, cabin, or camping accommodation that hasn't been booked out. What do you expect when Australia's biggest swapmeet is happening.

The Missus and I are heading down Friday night so we can hit the swapmeet nice an early. Doubt we will cover even a small percentage of the almost 2300 sites, but hope to find a few super cheap awesome treasures! I will be fighting an expected 20,000 - 40,000 bargain hunters for my treasure.

The Swap Meet is located at Ballarat Airport, on the Sunraysia Highway on the outskirts of Ballarat. Swap Meet site covers approximately 160 acres

Would have liked to ride down but taking the missus's cage so we can bring home the bits.  She has never been to Ballarat so it might be a fight wether I get to go back on the Sunday or end up at Sovereign Hill or some touristy place.

Unfortunately motorbikes and mini bikes are banned. Looks like you'll need something to get around.

Metric Drill Tap Chart

Amazing how hard it was to find this with metric Tap Size and Metric Hole Size.

For some stupid reason all the data had Metric Tap with, Imperial/Guage size/Imperial Decimal, etc, etc.

Now I need to know if the bolts are coarse thread or fine??

Download Here





Here is another that actually shows there is a differance between thread depth for softer Brass, Aluminium etc (75% thread depth) and harder steel (50% thread depth)

Download Here

Parts Manuals

Thought these might be useful to people. Click on relevant link below.

XS Models


1950-1996/XS/XS1_XSB_XS2_TX650.PDF


/XS650.PDF


XS650D_E_F.PDF


XS650G.PDF


XS650SE_SF_SG.PDF


XS650SH.PDF


XS650SJ.PDF


XS650SK.PDF


XS650_H.PDF


TX/TX65A_XS650.PDF



All YAMAHA

All Yamaha Parts Manuals 1950-1996

Sick & Twisted

Spoke to my frame builder today and due to the nature of the complex bends in my design, he would have to out source the bending to a CNC bender. $800 inc materials.  just for the bends  :-(  Not happy with that.

Might have to throw in the towel after all that work. Just don't have that kinda cash.



In the spirit of bending metal, here is a seriously BENT bike………


This bike is named Sick n Twisted, because it was built around a twisted front down tube. Peter Chumley spent two years constructing the motorcycle, which features a Harley Davidson twin-cam 1450cc motor, and a one-off frame, tank and bars.

All chassis components are built using stainless steel, which Chumley has then painted or polished to achieve the final look.

I thought maybe it was named Sick n Twisted, because it took a sick and twisted mind to like the way it looks!
Points for different, point for unique, negative score for proportions, taste and everything else.

Maybe something like these???

These are probably about the right rise, width & pullback.

A sweet looking pan from chopperdrome 79

This made me think of handle bars for some reason………Mmmmm I wonder why?

Zombie make some nice and different bar options.

She wants a guy with some big nuts!!!

Bar Hopping..of sorts

Went through a few different bar set ups and was amazed at the difference in looks, handling, rider position, and overall feel of the bike with each one.  I mean I know there is a big difference between apes and drag bars, however the difference between 1" in rise or width made quite a difference and that is what surprised me. Such a small variance made such a difference.

As per below you can see most of the bars off the bike. Bottom left Is the step down beach bars that came on the bike. Above them are some trackers. On the right the window bars sitting on the "'Z' bars.

The beach bars had been roughly stepped down from 1" to ⅞".  The grips were still 1" and had some pvc pipe glued inside to step back up.  Nothing surprises me when it comes to shoddy work on this bike anymore.  I had to remove my 3" risers as they wouldn't fit any of the other bars all being ⅞".  I stuck the OEM clamps on.

Firstly I tried the trackers which are a good width. I also found as soon as I put these on I wanted to ride faster, harder, and more aggressively. Interesting how the body position has a psychological affect on your riding, well mine anyway.  They also pull you forward form a upright neutral position I had been in previously.  They also look crap & are in a ancient primer finish.

Next came the window bars, these looked ok. However they are the narrowest and tallest, this made handling a bit unsettling and I really didn't feel safe riding the bike in anything other than a straight line.

The height was still comfortable.  It was at this point the left grip decided it was finished cooperating and was going to stay put.  A bit of a dip in boiling water persuaded it to comply.

Then  tried the 'Z' bars, these are pretty cool but to get a comfortable hand position I had to rotate them along way forward and on this bike it looked strange.  It also mean't I hard to lean a long way forward and with my foot peg in stock position, and the XS being relatively small I end up feeling quite compressed.

Lastly I decided to take Hap up on his offer to try his bars and/or 4"x ⅞" risers.  Unfortunately the PO didn't have any riser bushings so had over tightened the bolt, which had also seized with time and Hap snapped both bolts clean off.  Which he was apologetic to me cos I couldn't now try them, and I was feeling guilty as It was something else he needed to fix before getting his bike on the road.

Well I still had a go with his Drag bars which I think are home made by someone. Obviously no rise in these, they had the least pull back and almost as narrow as the window bars. They are 2" overall narrower than the trackers.  Still need to lean forward but not excessively and with 3"- 4" risers would probably be ok. This is the set up that came on Hap's bike.

I have been riding with these bars for a week now and are way better for dealing with traffic than the super wide beach bars that need heaps of clearance. However with out the risers the controls do hit the tank. Not good for the paint.

None of the bars allowed me to see anything in the mirror but my chest.

I'm thinking to try running the trackers for a week with bar end mirrors and see how that feels.

In conclusion I am now looking for bars the width of the trackers, and similar pull back, with about 3-5" rise in the bars or combined with risers.  Also looking for 1" clutch, master cylinder & throttle.

VIC ROAD RULES

Here are the rules from the Vicroads website.

Interesting one on lane splitting.  I always thought it was classified as over taking and must be done on the right, and you can over take moving vehicles…...

Lane splitting

From Wikipedia, the free encyclopedia

Lane splitting refers to a two-wheeled vehicle moving between lanes of vehicles that are proceeding in the same direction. More narrowly, it refers to passing stopped or slower moving traffic between lanes at a speed greater than surrounding traffic. It is also sometimes called lane sharing, whitelining,  filtering, or stripe-riding. Alternatively, lane splitting has been used to describe moving through traffic that is in motion while filtering is used to describe moving through traffic that is stopped.

Lane splitting by motorcycles is generally legal in Europe, and in Japan and several other countries, and is legal in some U.S. states.

Also  legal and practiced extensively throughout Asia.

The Oxford Systematics report commissioned by VicRoads, the traffic regulating authority in Victoria, Australia, found that for motorcycles filtering through stationary traffic "No examples have yet been located where such filtering has been the cause of an incident."

Lane splitting is permitted in the following countries:

• Austria
• Belgium
• Brazil
• Croatia
• Cyprus
• Estonia
• Greece
• Ireland
• Italy
• Japan
• Netherlands (jurisprudence assigns responsibility in case of accidents to the car driver)
• New Zealand
• Norway
• Oman
• Poland
• Portugal
• Qatar
• Singapore
• Spain
• South Africa
• Taiwan
• Turkey
• U.A.E.
• United Kingdom
• United States

In Australia a furor erupted when the transport authorities decided to consolidate and clarify the disparate set of laws that collectively made lane splitting illegal. Because of the very opacity of the laws they were attempting to clarify, many Australians had actually believed that lane splitting was legal, and they had been practicing it as long as they had been riding. They interpreted the action as a move to change the law to make lane splitting illegal. Because of the volume of public comment opposed to this, the authorities decided to take no further action and so the situation remained as it was.

Riding a motorcycle
A rider of a motorcycle must obey the same road laws that apply to drivers.

Helmets
Riders and their passengers must wear helmets approved to Australian Standard AS1698 or AS/NZS1698, and these must be securely fitted and fastened on their heads.  The helmets must have a mark indicating AS1698 or AS/NZS1698 approval.

Parking
In Victoria you may legally park your motorcycle on the footpath (unless otherwise signed) as long as you do not obstruct pedestrians, delivery vehicles, public transport users or parked cars.

Lane splitting
You must drive with your vehicle completely within a lane. Riding between lines of moving vehicles is illegal and dangerous.

Transit and special purpose lanes
Motorcycles are permitted in transit lanes but you must not ride your motorcycle in tram lanes, bus lanes, bicycle lanes or other lanes designated for special vehicles, except as permitted under the rules, for example for the permitted distance when entering or leaving the road.

Pillion passengers and animals
Riders must not ride with:

• more than one pillion passenger.
• more passengers in a sidecar than the sidecar is designed to carry.
• an animal between the rider and the handlebars (working farmers exempt for 500 metres on a road).
• a child under 8 years old unless the passenger is in a sidecar.

Pillion passengers must sit astride the motorcycle and behind the rider, face forward and keep both feet on footpegs provided for them.

Riding with other riders
Riders must not ride more than two abreast.  If riding two abreast, riders must not ride more than 1.5 metres from the other rider.

Miniature motorcycles/ monkey bikes
A miniature motorcycle must not be used on public roads, footpaths or nature strips because they do not meet registration standards.  Whilst a miniature motorcycle can’t be registered, any person who rides it on a public road without a valid motorcycle licence is committing two offences – driving an unregistered vehicle and driving without a licence.

Miniature motorcycles can be used on private property but there are serious concerns about the safety of many of the models being sold.  Consumer Affairs Victoria banned the sale of miniature motorcycles that do not meet safety standards.  For information visit theConsumer Affairs Victoria website and search for ‘Monkey Bikes’.

Rule referencesRoad Safety Road Rules 2009

• 146 Driving within a single marked lane or line of traffic
• 151 Riding a motor bike or bicycle alongside more than 1 other rider
• 156 Transit lanes
• 197 Stopping on a path, dividing strip or nature strip
• 270 Wearing motor bike helmets
• 271 Riding on motor bikes and motor cycles

To look up these rules and check for other related rules, please refer to the Acts and Regulations administered by VicRoads.
